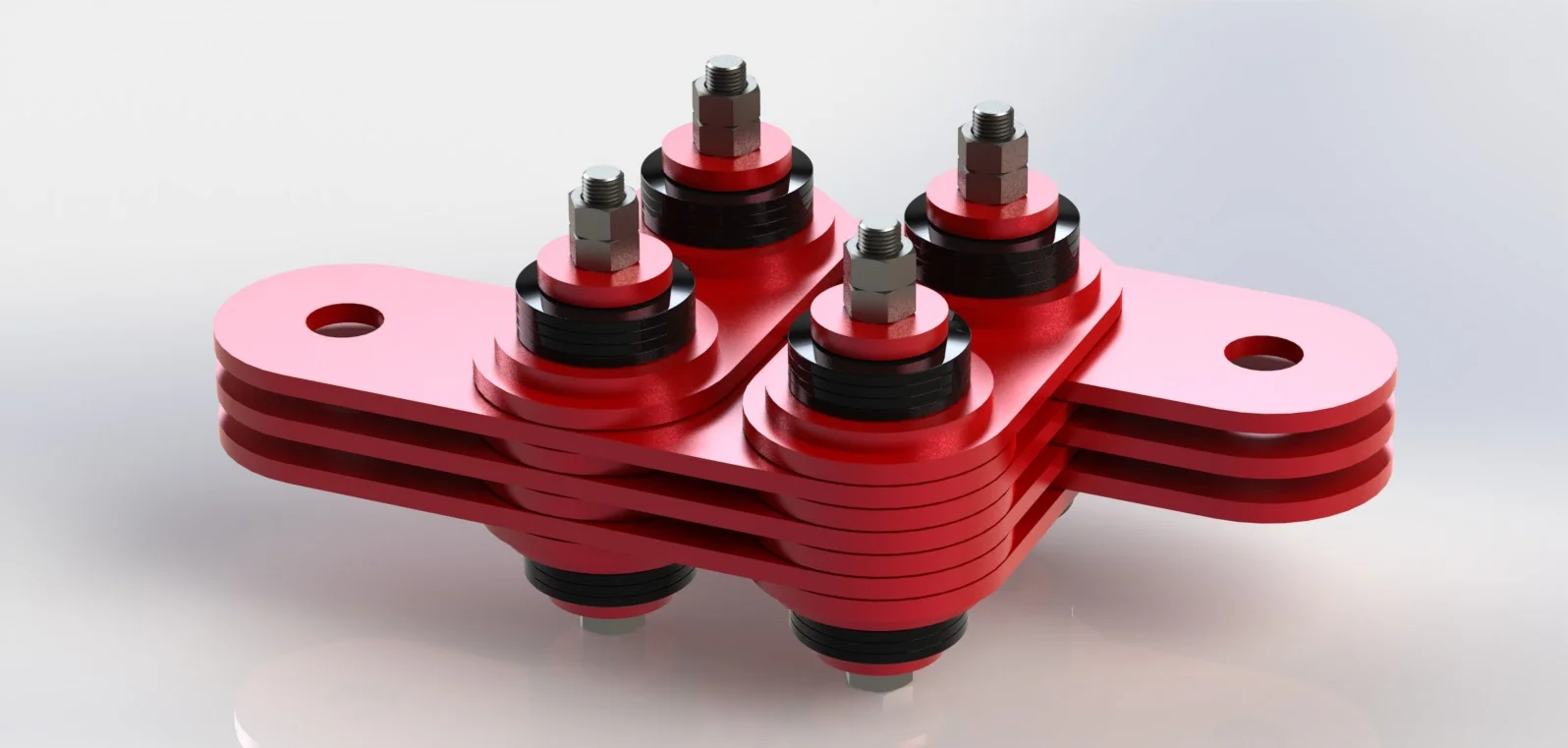

Multi Unit Friction Damper with 4 Friction Joints

The Multi Unit Friction Dampers are based on a rotational friction concept like all Damptech dampers. The dampers can be installed, for example, in frame structures as V-Bracing, Diagonal Bracing, or Panel Dampers. The dampers are connected to the structure with pin connections on both sides.

BASE ISOLATION

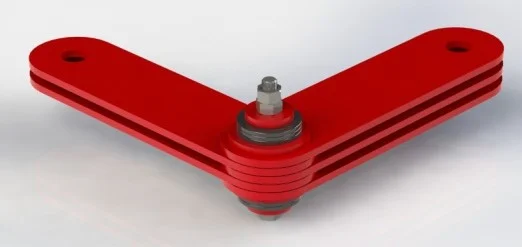

Damptech V Damper used in Base Isolation

Damptech V Damper used in Base Isolation



Damptech has also significant experience in Base Isolation.  Our Base Isolation systems use our V dampers, which can be calibrated for high capacities and high displacements. The dampers are installed as a hybrid system: using Damptech dampers and elastomer isolation pads.

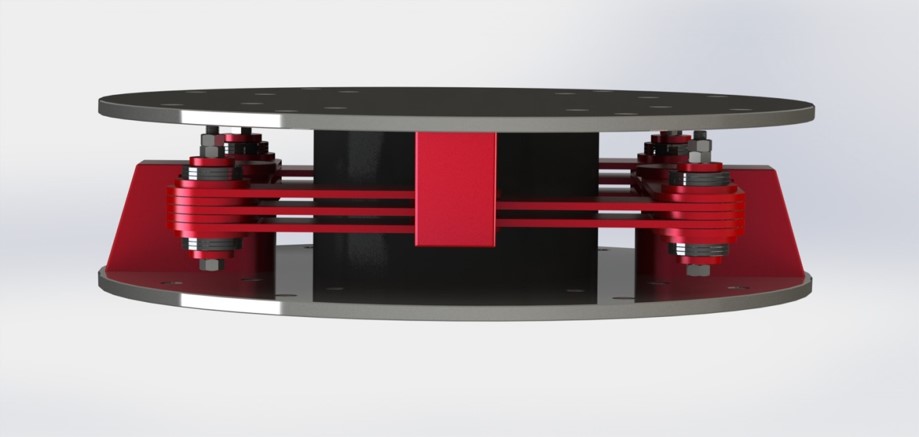

Rubber Bearing Friction Damper (RBFD)

Rubber Bearing Friction Damper (RBFD)

Rubber Bearing Friction Damper (RBFD)

Damptech has also created a damper that combines the benefits of the rotational friction damping with the vertical support of the elastomeric bearing.  Fully tested with research from 2010, Damptech's RFID (Rubber Bearing Friction Damper) is well suited for buildings base isolation, bridge base isolation, and isolation of non-structural components.



RFID Showing four Damptech dampers and center rubber bearing.

RFID Showing four Damptech dampers and center rubber bearing.

Applications: Buildings, bridge base isolation, and isolation of non-structural components. The patented design allows movement in both directions, as well as torsional movement.
